Flexitech Engineering is a leading manufacturer of conveyor systems and automation equipment in India, offering high-quality solutions designed to enhance efficiency in material handling systems. Our roller conveyors are engineered to accommodate different production line requirements, making them ideal for a wide range of industrial applications.

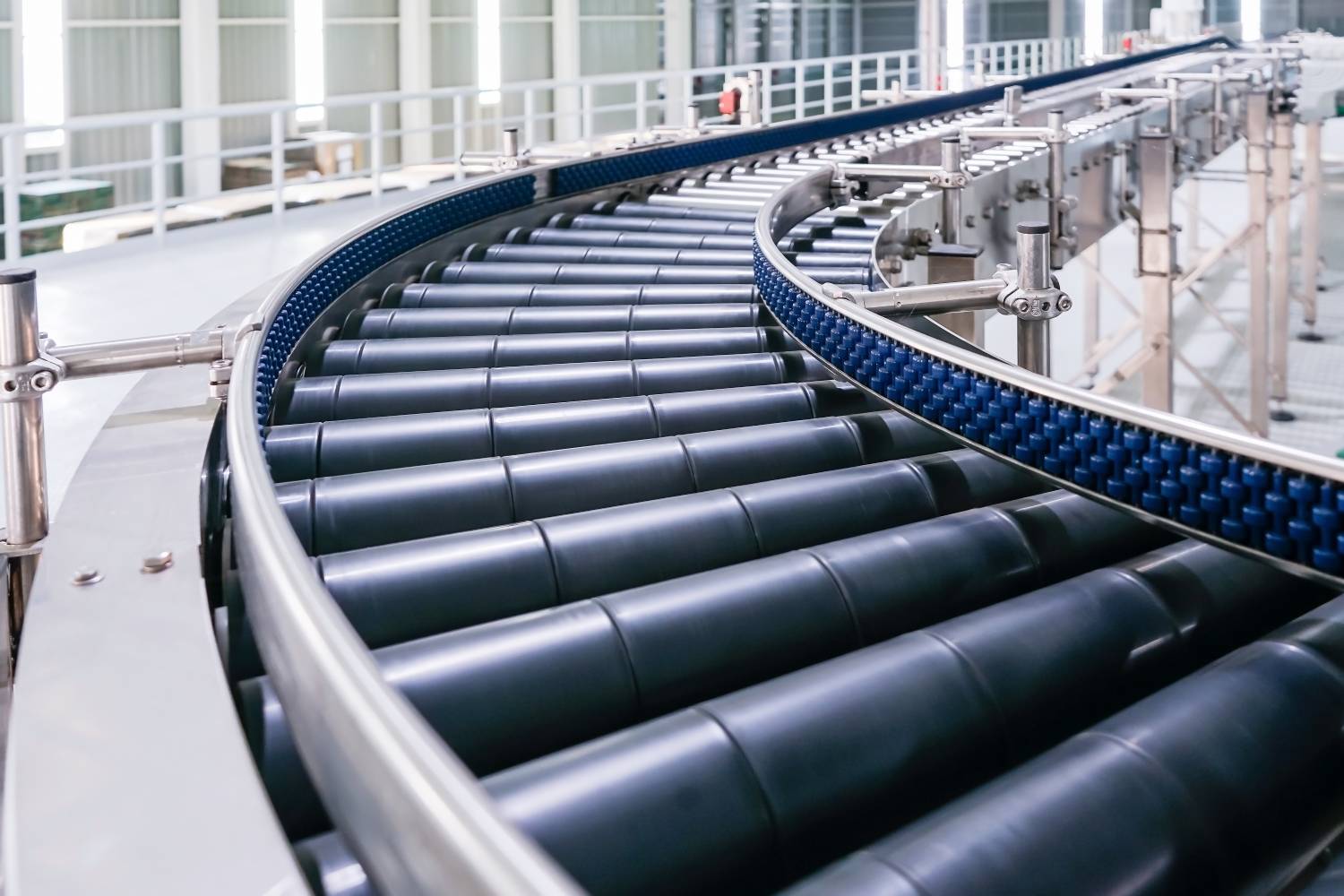

A roller conveyor moves loads across a series of cylindrical rollers mounted transversely between two side frames, powered either by gravity on an incline or by a lineshaft, belt, O-ring or 24V DC motorized drive. Manufactured using premium-quality zinc-plated or stainless-steel tubes in multiple sizes — including a standard diameter of 50mm — these rollers deliver smooth, low-noise operation with minimal maintenance, for both light-duty and heavy-duty applications across logistics, warehousing, packaging and distribution.
Cylindrical rollers are mounted across two parallel side frames, spaced to suit the size of the load being carried. On a gravity roller conveyor, an incline lets loads move under their own weight; on a powered roller conveyor, a lineshaft, belt, O-ring or 24V DC motor drives the rollers directly, transferring rotation from one roller to the next for continuous, controlled movement.
Standard series and dimensions for our roller conveyor range — custom frame widths, roller spacing and drive options are available on request.
| Type | Drive | Roller diameter range (mm) | Frame width range (mm) |
|---|---|---|---|
| Gravity Roller Conveyor | Unpowered, incline-driven | 38 – 76 | 300 – 1200 |
| Powered / Motorized Roller Conveyor | Lineshaft, belt, O-ring or 24V DC | 50 – 89 | 300 – 1200 |
| Accumulation Roller Conveyor | 24V DC motorized, zero-pressure | 50 | 300 – 900 |
Advanced engineering across every roller conveyor we manufacture, to enhance operational efficiency and reduce downtime.
Roller conveyors are one of the most widely used material handling systems, moving cartons, pallets, totes and components across warehouses, distribution centers, packaging lines and assembly plants — wherever goods need to move reliably from one station to the next.
Talk to Our TeamOther conveyor solutions built on the same engineering platform.
A roller conveyor is a material handling system that uses a series of cylindrical rollers mounted in a frame to move cartons, pallets or components from one point to another, either by gravity or with a powered drive.
Gravity roller conveyors need no power — loads move on their own down an incline. Powered roller conveyors use a lineshaft, belt, O-ring or 24V DC motor to drive the rollers on level or inclined sections, giving controlled speed and direction.
Capacity depends on roller diameter, wall thickness, frame width and spacing — we design each conveyor to suit loads ranging from light cartons to heavy pallets and industrial components.
Yes — frame width, roller diameter and spacing, drive type, and straight, curved or inclined sections can all be tailored to your space and throughput needs.
